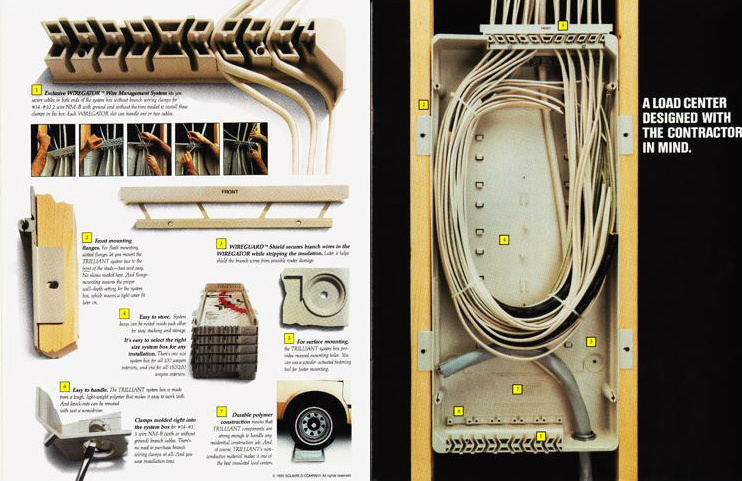

A LOAD CENTER DESIGNED WITH THE CONTRACTOR I MIND.

[1] Excusive WIREGATOR Wire Management System lets you secure cables in both ends of the system box without branch wiring clamps #14-#10 2 wire NM-B with ground and without the time needed to install these clamps in the box. Each WIREGATOR slot can handle one or two cables.

[2] Front mounting flanges. For flush mounting, slotted flanges let you mount the TRILLANT system box to the front of the studs -- fast and easy. No shims needed here. And flange-mounting assures the proper wall-depth setting for the system box, which means a tight cover fit later on.

[3] WIREGUARD Shield secures branch wires in the WIREGATOR while stripping the insulation. Later it helps shield the branch wires from possible router damage.

[4] Easy to store. System boxes can be nested inside each other for easy stacking and storage.

It's easy to select the right size system for any installation. There's one size system box for all 100 ampere interiors, and one for all 150/200 ampere interiors.

[5] For surface mounting, the TRILLIANT system box provides recessed mounting holes. You can use a powder-actuated fastening tool for faster mounting.

[6] Easy to handle. The TRILLIANT system box is made from a tough, light-weight polymer that makes it easy to work with. Andknock-outs can be removed with just a screwdriver.

Clamps molded right into the system box for #14-#1 3 wire NM-B (with or without ground) branch cables. There's no need to purchase branch wiring clamps at all. And you save installation time.

[7] Durable polymer construction means that TRILLIANT components are strong enough to handle any residential construction job. And, of course, TRILLIANT's non-conducting material makes it one of the best insulated load centers.
